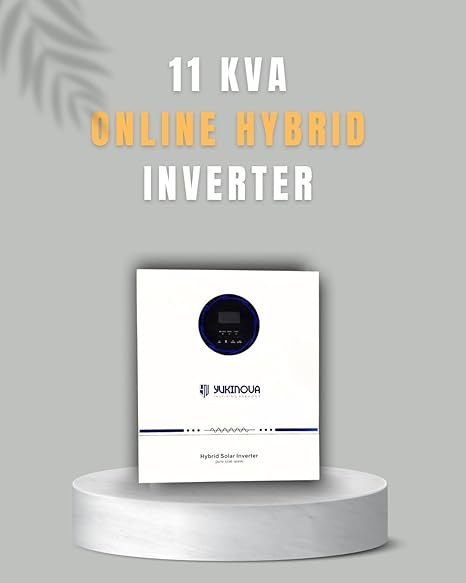

Yukinova 11KVA Hybrid Solar Inverter
Category: Hybrid Inverter
₹88,400
₹108,000 18% off
Inclusive of GST (18%)
Free Shipping
Secure payments
Guaranteed delivery
Money-back protection
24/7 support
Data privacy
- Rated Power: 11000W | Peak Power: 22000VA
- MPPT Range: 60–500V DC
- Display: LCD
The Yukinova 11KVA Hybrid Solar Inverter is a high-performance and intelligent energy solution designed to deliver uninterrupted and efficient power supply for residential and commercial applications. Built with advanced high-frequency inverter technology, it ensures superior efficiency, compact design, and reliable performance.

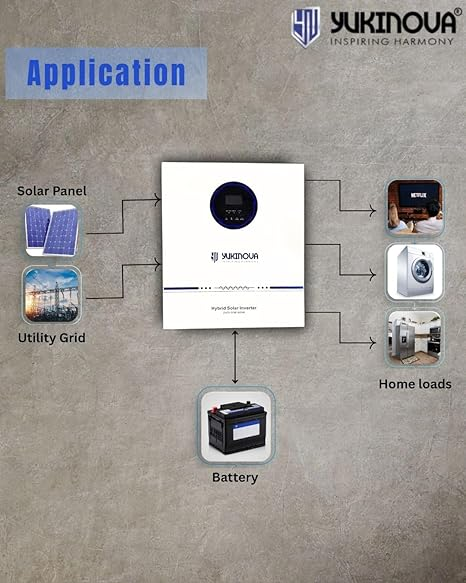

Equipped with an advanced MPPT (Maximum Power Point Tracking) controller, the inverter maximizes solar energy utilization by extracting the highest possible power from solar panels, even under fluctuating sunlight conditions. It seamlessly integrates solar power, battery storage, and grid supply, ensuring continuous operation and optimized energy usage.
The inverter delivers a pure sine wave output, making it safe for sensitive appliances such as TVs, refrigerators, computers, and other electronic devices. Its smart energy management system automatically prioritizes solar power, reducing electricity costs and improving overall system efficiency.
| Parameter | Details |
| Rated Power | 11000W | Peak Power: 22000VA |
| Input Voltage | 208/220/230/240V AC |
| Input Range | 154–264V (Normal) | 185–264V (UPS) |
| Output Voltage | 208/220/230/240V AC ±5% |
| Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms / 20ms |
| Battery Voltage | 48V DC |
| Charging Voltage | 56.4V (Bulk) / 54V (Float) |
| Solar Technology | MPPT |
| Max PV Power | ~11000–12000W |
| MPPT Range | 60–500V DC |
| Max PV Voltage | 500V DC |
| Max Charge Current | ~150A |
| Display | LCD |
| Communication | RS232, Optional WiFi, BMS Support |
| Parallel Support | Available |
| Efficiency | >94% |
| Operating Temperature | -10°C to 50°C |
Limited Warranty Terms & Conditions
Note
To ensure that the device sent to our company is evaluated under the warranty (during the product’s warranty period), no hardware interventions must be performed. The device must be undamaged, the warranty seal must not be removed or damaged, and the product must be returned in its original packaging. Failure to comply with these conditions will result in the device being classified as tampered with and excluded from warranty coverage.
Cases Not Covered by Warranty
1. Damage to the batteries caused during transportation.
2. Damage resulting from interventions on the battery by unauthorized service centers.
3. Damage caused by incorrect polarity of battery connections.
4. Damage due to drawing current that exceeds the battery’s discharge capacity.
5. Damage caused by charging the battery with a current exceeding its maximum charging capacity.
6. Damage due to charging the battery with a voltage exceeding the maximum charging voltage specified in the user manual.
7. Damage caused by short-circuiting the battery terminals.
8. Damage caused by contact between the positive (+) and negative (–) terminals with metallic objects.
9. Defects and damages due to improper assembly, maintenance, repair, or disassembly by unauthorized individuals.
10. Damage caused by incomplete insertion of battery connectors.
11. Damage resulting from opening and tampering with the battery by unauthorized individuals.
12. Damage caused by dropping the battery from a significant height.
13. Damage caused by striking the battery with objects such as hammers, shovels, or similar tools.
14. Damage due to series connections of batteries.
15. Damage from exposure to high currents or voltages.
16. Damage caused by contact with liquids.
17. Damage from storage or use of the battery in extremely humid environments.
18. Damage caused by exposure to temperatures above or below the values specified in the user manual.
19. Damage due to use of the battery outside the specifications listed in the user manual.
20. Damage caused by direct exposure to sunlight, fire, heating devices, or materials with high temperatures.
21. Damage caused by connecting the battery to AC devices without an appropriate inverter.
22. Damage due to directly powering devices such as televisions or washing machines with the battery.
23. Damage caused by charging the battery directly from an AC source without a converter.
24. Damage from continued operation of the battery under risky conditions.
25. Damage from extended operation of the battery below its nominal operating voltage.
26. Damage from storing or using the battery near fire or heat sources.
27. Damage caused by parallel electrical connections with batteries of different types, capacities, or production dates.
28. Damage due to physical impacts or vibrations on the battery.
29. Damage caused by removing battery connectors while loads are connected or during current flow.
